Aspire RS-T

Aspire RS-T Features:

• Semi Collapsible Cart, easily collapses in Height, an extra large mobility type cart format, Aluminum full frame, Fits in most 6 ft. and larger pickup truck beds, horse trailers, race car trailers, etc.
• Same features of the Aspire RS but with Tiller type steering, allowing it to be used in areas where golf carts are not allowed. (please check your local bylaws)

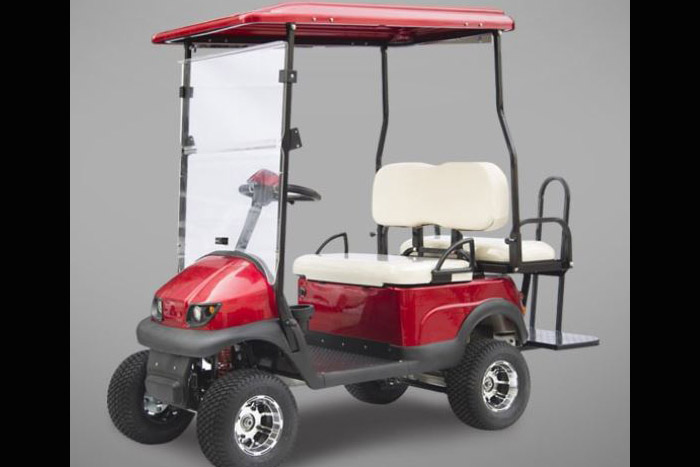

• Streamlined Rounded Front Design

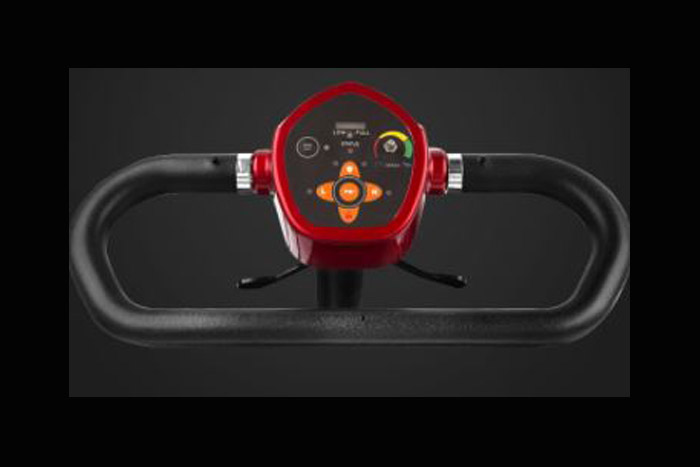

• Left side Tiller Steering with all controls on the Tiller like a mobility type scooter, for Ease of Operation and Handling as well as driver and Passenger comfort
• Front and Rear Suspension Adjustable Shocks for Great Ride Stability, Control and Passenger Comfort,
• Horn, LED Headlights, Taillights, Signal Lights

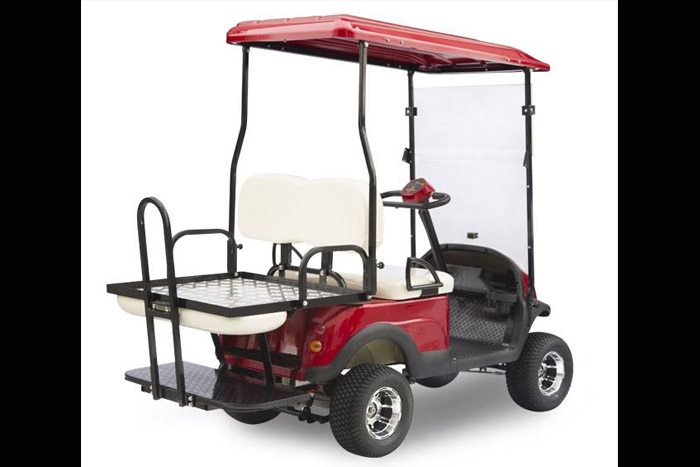

• Rear Flip Down Seat, for 2 extra passengers and it also flips down into a convenient cargo carrier for easy transporting of laundry, firewood, coolers, etc., large rear seat area with side grab rails for extra safety
• Battery charge indicator
• Keyed ignition Switch Standard,
• Front and Rear Seat Hand Rails
• Standard 16 inch tall Tires with Polished 8 inch Aluminum Rims
• Powerful 2000 Watt High Torque Motor
• Hard Top Roof with flip down windshield, painted to match cart
• Easy to maintain, durable, comfortable and fun to drive.

Aspire RS-T Specifications:

• Size:  In "drive position", not including roof assembly:  89.5" L x 37.5" W x 47" H In "drive position", with roof assembly: 89.5" L x 37.5" W x 74." H  Completely Collapsed in height and rear footrest removed: 71" L x 37.5” W x 32" H
• Weight: approx. 395 lbs. + or - depending on configuration
• Seating capacity: 4 persons (with rear sear option)
• Batteries: Standard: 12 volt, 80 AH x 3, sealed, Maintenance free,  Optional: 12 volt, 55 AH x 3, sealed, Maintenance free
• Battery Charger: Standard: outboard, 10-amp, auto cutoff,  Optional: onboard 20 amp fully automatic, with battery diagnostics, multi stage charging, auto maintenance mode and trickle charge
• Motor: 2000 Watt, high efficiency, 36 Volt,  DC Motor
• Controller: Curtis controller
• Speed Control: Foot operated traditional accelerator pedal for smooth operation
• Direction Control: conveniently located Forward/Reverse switch
• Lights and Horn: LED Headlights, Taillights, Turn signals and Horn all standard
• Maximum vehicle speed: approx. 17 to 20 km/h (10 -12 MPH) depending on terrain and payload.

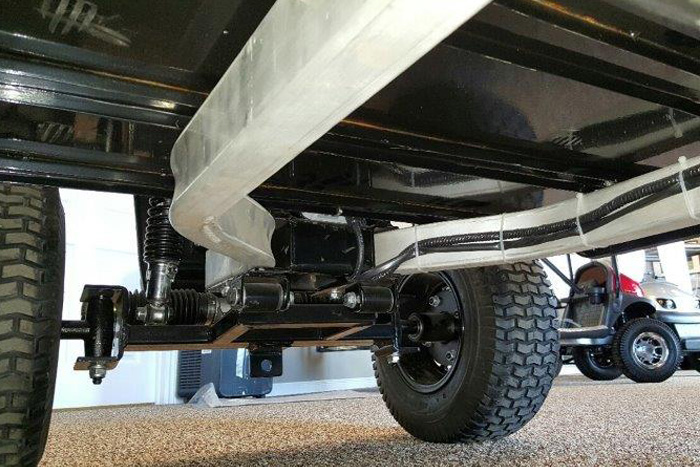

• Steering: Rack and pinion
• Brakes: Regenerative electromagnetic motor braking, with automatic electromagnetic parking brake
• Braking distance: <4m

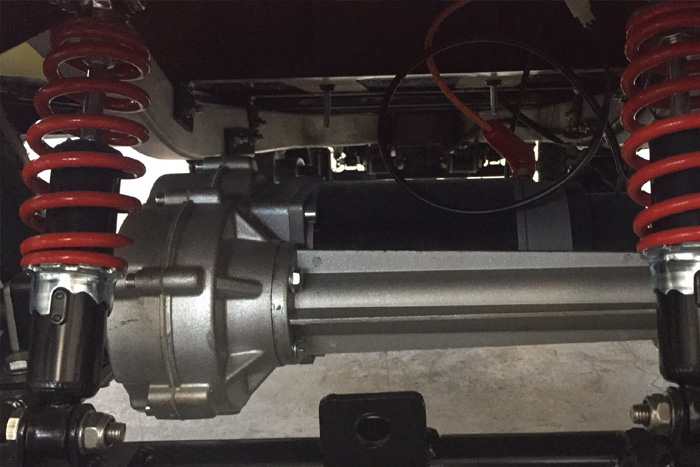

• Suspension: Adjustable, Front and Rear Shocks and Springs
• Maximum grade ability: approx. 20%, depending on terrain and payload
• Pay Load weight: approx. 600 lbs. (including passengers and load)
• Charge time: approx. 6 to 8 hours, depending on battery discharge state.
• Running period of a charge: approx. 6 to 8 hours, depending on type of use and terrain
• Travel Range: approx. 40 km, depending on terrain, payload and battery configuration.

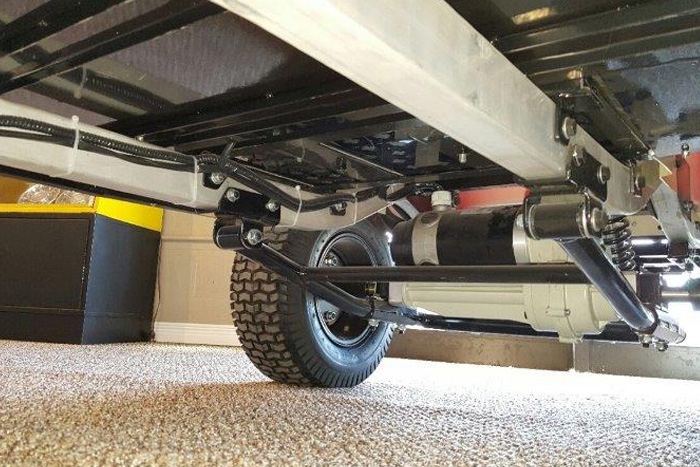

• Frame: Heavy Duty Aluminum Tube Main Frame with MIG Welded high tensile steel sub frame sections
• Body: PP - Molded polymer-reinforced plastic

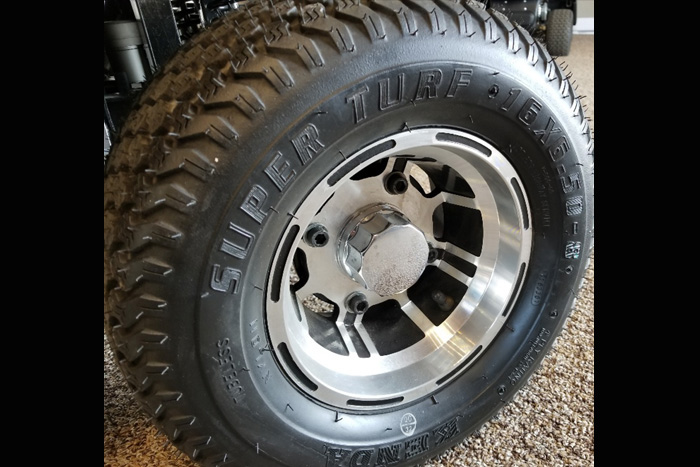

• Tires: 16 x 6.50 - 8 Tubeless on Polished Aluminum Rims






Aspire RS-T Pricing:

US Dollars and Canadian Dollars



USD Price: Starting at $3,890.00 USD Dollars


Click On Price Below for all Aspire RS-T Cart Options and Pricing US Dollars
NO Roof, NO Rear Seat, Standard Charger ... $3,890.00 USD NO Roof, NO Rear Seat, Upgraded Charger ... $4,065.00 USD NO Roof, With Rear Seat, Standard Charger ... $4,020.00 USD NO Roof, With Rear Seat, Upgraded Charger ... $4,195.00 USD With Roof, NO Rear Seat, Standard Charger ... $4,056.00 USD With Roof, NO Rear Seat, Upgraded Charger ... $4,230.00 USD With Roof and Rear Seat, Standard Charger ... $4,185.00 USD With Roof and Rear Seat, Upgraded Charger ... $4,360.00 USD
USD Price includes Customs Import Duties and Fees,
Crating and Shipping costs are not included, contact us for shipping cost to your area
(Due to Louisiana Motor Vehicle Commission Laws, we unfortunately DO NOT ship to Louisiana)

CAN Price: Starting at $4585.00 CAN Dollars


Click On Price Below for all Aspire RS-T Cart Options and Pricing Canadian Dollars
NO Roof, NO Rear Seat, Standard Charger ... $4,585.00 CAN NO Roof, NO Rear Seat, Upgraded Charger ... $4,785.00 CAN NO Roof, With Rear Seat, Standard Charger --- $4,750.00 CAN NO Roof, With Rear Seat, Upgraded Charger --- $4,950.00 CAN With Roof, NO Rear Seat, Standard Charger --- $4,785.00 CAN With Roof, NO Rear Seat, Upgraded Charger --- $4,985.00 CAN With Roof and Rear Seat, Standard Charger --- $4,950.00 CAN With Roof and Rear Seat, Upgraded Charger --- $5,150.00 CAN
CAN Price does not include Sales Tax
Crating or Shipping costs are not included, contact us for shipping cost to your area
