Aspire SS

Mini Golf Cart

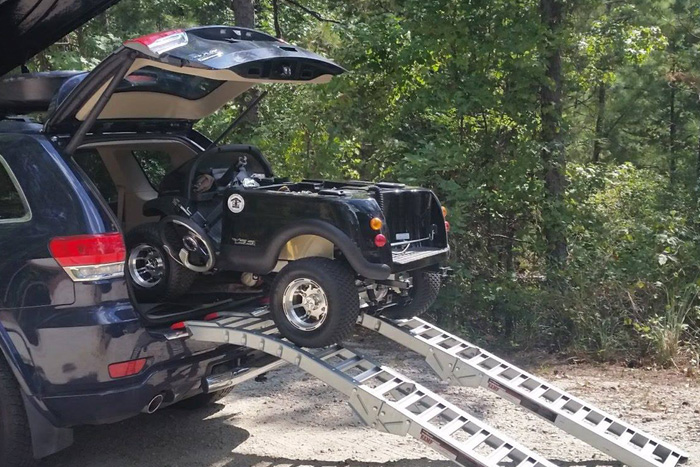

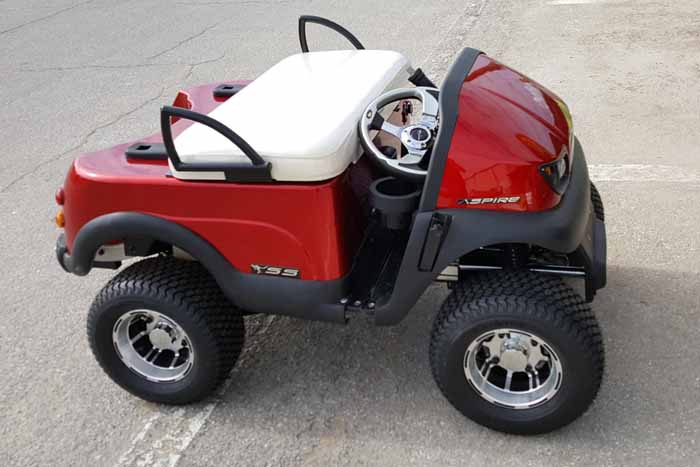

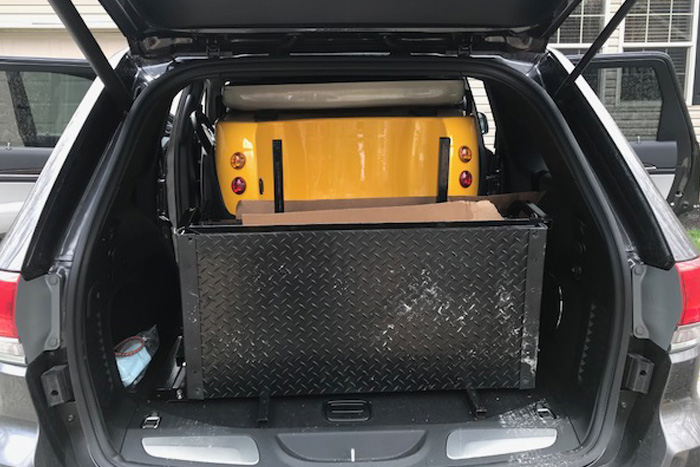

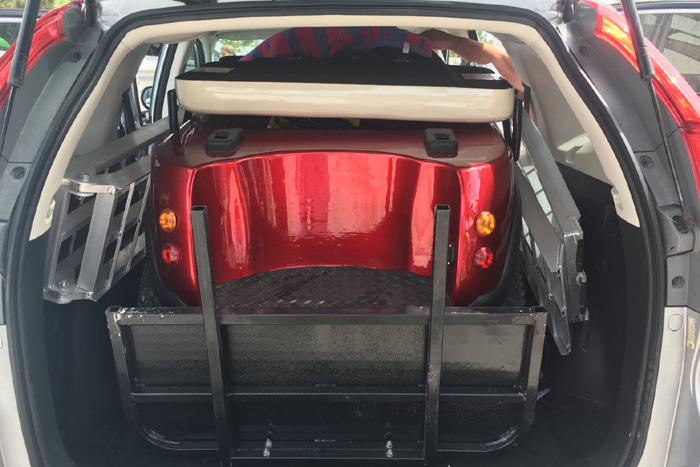

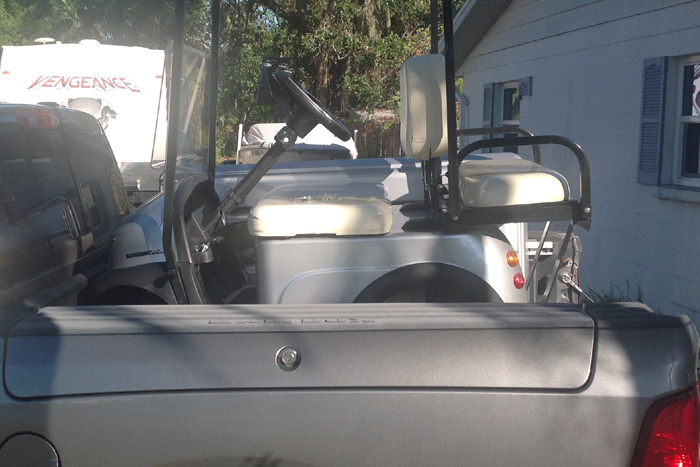

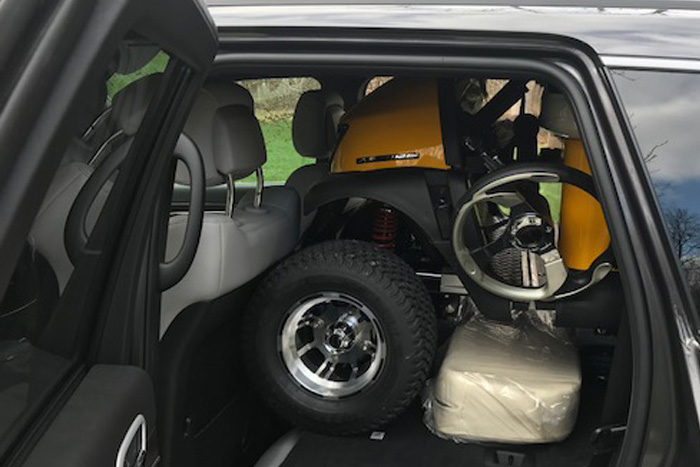

Fully Collapsible, Collapses in Height and Length
[ Return to All Carts ]

Aspire SS Features:

  • Fully Collapsible, Easily Collapses in Height and Length

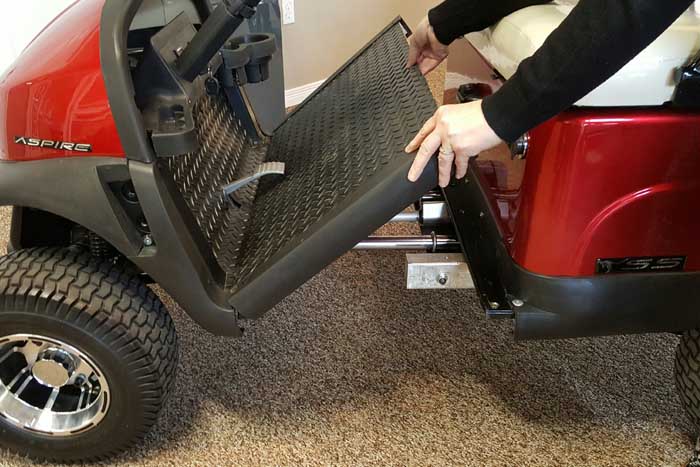

  • The Aspire SS collapses with the touch of a button using our Innovative and Exclusive, Industry First, POWER Assisted Collapsing System, which is the Strongest and Most Rigid Collapsing System on the market, NO pushing, pulling and shoving to collapse or expand the cart. (See Video of Aspire SS Here)
  • Streamlined Rounded Front Design
  • Left side Sport Steering Wheel and Accelerator Pedal, for Ease of Operation and Handling as well as driver and Passenger comfort

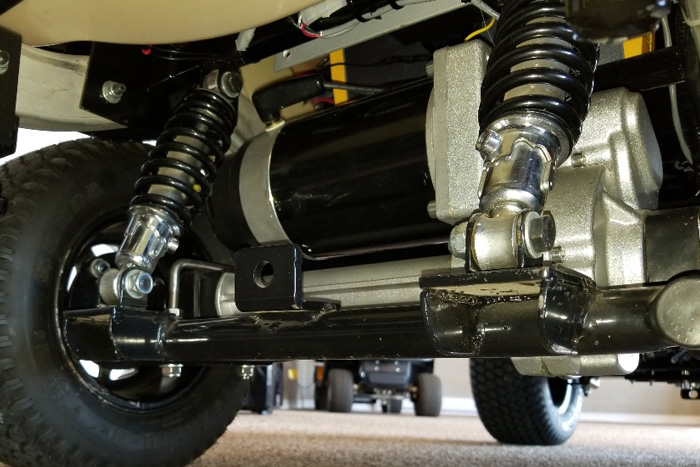

  • Front and Rear Suspension Adjustable Shocks for Great Ride Stability, Control and Passenger Comfort,
  • Horn, LED Headlights, Taillights, Signal Lights

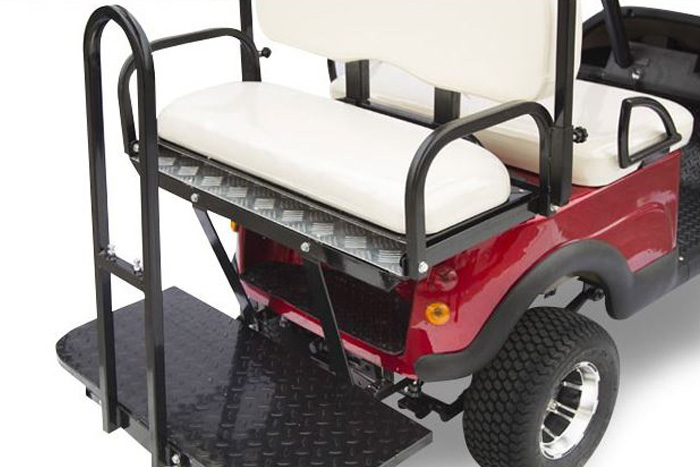

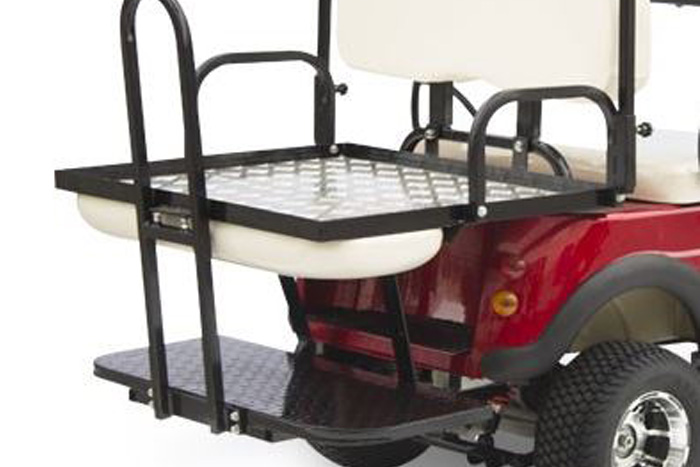

  • Rear Flip Down Seat, for 2 extra passengers and it also flips down into a convenient cargo carrier for easy transporting of laundry, firewood, coolers, etc., large rear seat area (can be purchased without rear seat)
  • Battery charge indicator
  • Keyed ignition Switch Standard,
  • Front and Rear Seat Hand Rails for extra safety
  • Standard 16 inch tall Tires with Polished 8 inch Aluminum Rims
  • Powerful 2000 Watt High Torque Motor

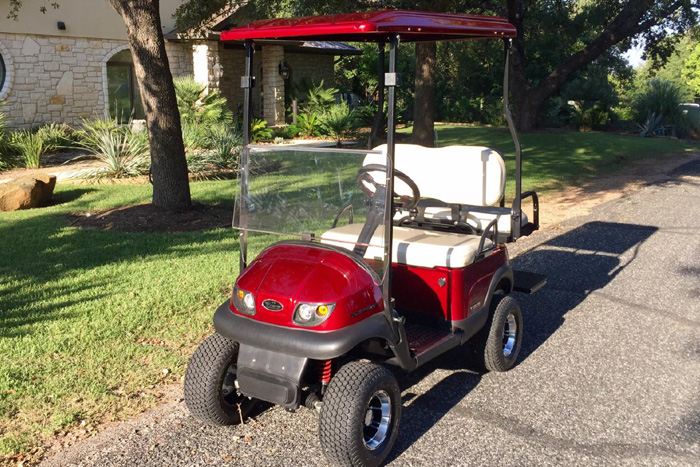

  • Hard Top Roof with flip down windshield, painted to match cart
  • Easy to maintain, durable, comfortable and fun to drive.

Aspire SS Specifications:

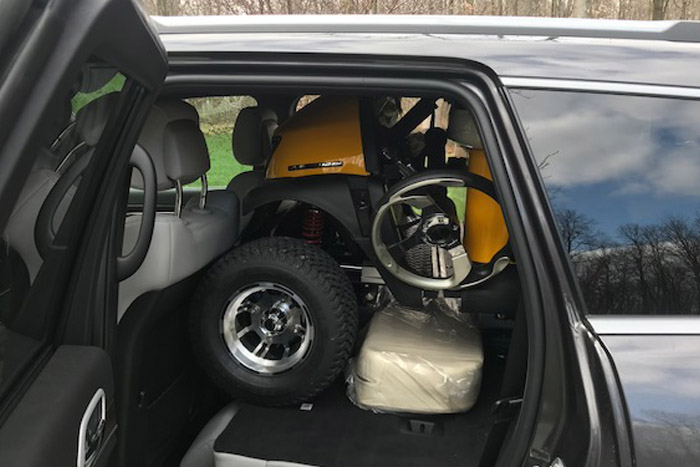

  • Size: In "drive position", not including roof assembly:  89.5" L x 37.5" W x 47" H  In "drive position", with roof assembly: 89.5" L x 37.5" W x 74." H, Completely Collapsed in height and length: 59" L x 37.5" W x 32" H
  • Weight: approx. 395 lbs. + or - depending on configuration
  • Seating capacity: 4 persons (with rear sear option)
  • Batteries: Standard: 12 volt, 80 AH x 3, sealed, Maintenance free,  Optional: 12 volt, 55 AH x 3, sealed, Maintenance free
  • Battery Charger: Standard: outboard, 10-amp, auto cutoff,  Optional: onboard 20 amp fully automatic, with battery diagnostics, multi stage charging, auto maintenance mode and trickle charge
  • Motor: 2000 Watt, high efficiency, 36 Volt,  DC Motor
  • Controller: Curtis controller
  • Speed Control: Foot operated traditional accelerator pedal for smooth operation
  • Direction Control: conveniently located Forward/Reverse switch
  • Lights and Horn: LED Headlights, Taillights, Turn signals and Horn all standard
  • Maximum vehicle speed: approx. 17 to 19 km/h (11 -12 MPH) depending on terrain and payload.
  • Steering: Rack and pinion
  • Brakes: Regenerative electromagnetic motor braking, with automatic electromagnetic parking brake
  • Braking distance: <4m
  • Suspension: Adjustable, Front and Rear Shocks and Springs
  • Maximum grade ability: approx. 20%, depending on terrain and payload
  • Pay Load weight: approx. 600 lbs. (including passengers and load)
  • Charge time: approx. 6 to 8 hours, depending on battery discharge state.
  • Running period of a charge: approx. 6 to 8 hours, depending on type of use and terrain
  • Travel Range: approx. 40 km, depending on terrain, payload and battery configuration.
  • Frame: Heavy Duty Aluminum Tube Main Frame with MIG Welded high tensile steel sub frame sections
  • Body: PP - Molded polymer-reinforced plastic

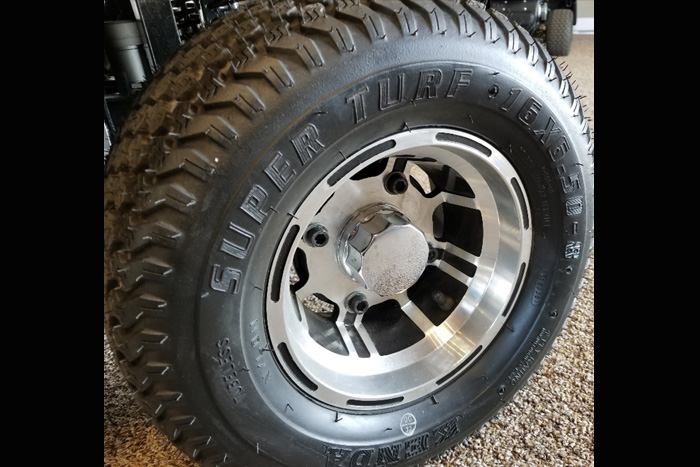

  • Tires: 16 x 6.50 - 8 Tubeless on Polished Aluminum Rims
  • Available Colors



    Aspire SS Pricing:

    US Dollars and Canadian Dollars

    USD Price: Starting at $4,670.00 USD Dollars
    Click On Price Below for all Aspire SS Cart Options and Pricing US Dollars

    USD Price includes Customs Import Duties and Fees,
    USD Pricing DOES NOT Include Shipping costs or any US Government imposed tariffs
    The US Government currently has imposed a 15% tariff over and above the normal 2.5% on all carts imported into the USA,
    Contact us for shipping cost to your area and more info on the tariffs or a total price quote
    (Due to Louisiana Motor Vehicle Commission Laws, we unfortunately DO NOT ship to Louisiana)
    CAN Price: Starting at $5,585.00 CAN Dollars
    Click On Price Below for all Aspire SS Cart Options and Pricing Canadian Dollars

    Click Below for CAN Price does not include Sales Tax
    Crating or Shipping costs are not included, contact us for shipping cost to your area
